To use a NIBP extension tube, follow these general steps:

1.Choose the appropriate size of blood pressure cuff for the patient's arm or leg and wrap it around the limb.
2.Connect one end of the extension tube to the cuff connector on the blood pressure cuff.
3.Connect the other end of the extension tube to the corresponding connector on the NIBP monitor.
4.Turn on the NIBP monitor and follow the manufacturer's instructions for taking a blood pressure reading.
5.Once the reading is complete, disconnect the extension tube from the NIBP monitor and from the blood pressure cuff, and clean the extension tube according to the manufacturer's instructions.

1.Product Name :

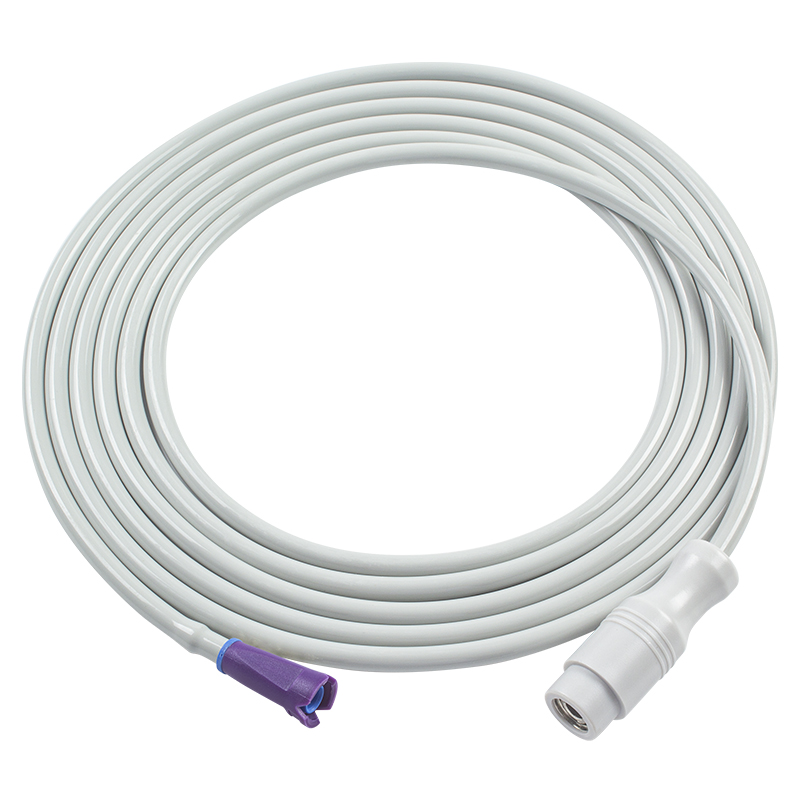

Siemens Draeger MP00945 MP00953 2870298 Infinity M540 NIBP adapter Extension Hose Tube

2. Compatibility:

Infinity Delta, InfinityGamma, Infinity Kappa,Infinity Vista, SC 6000, SC7000, SC 8000, SC 9000

OEM Part Number Cross References:
Manufacturer OEM Part #
Draeger 1275 275 E07, 1275 275 EH5OU, MP00953 (New Style)
Sage H09-40-15

Neonate NIBP Hose tube OEM Part Number Cross References:

Manufacturer OEM Part #
AMC HO-S16378-15
Mindray > Datascope 6200-30-11560
Philips M1596B, M1597B
Sage H01N-16-20

3.Technical Parameters

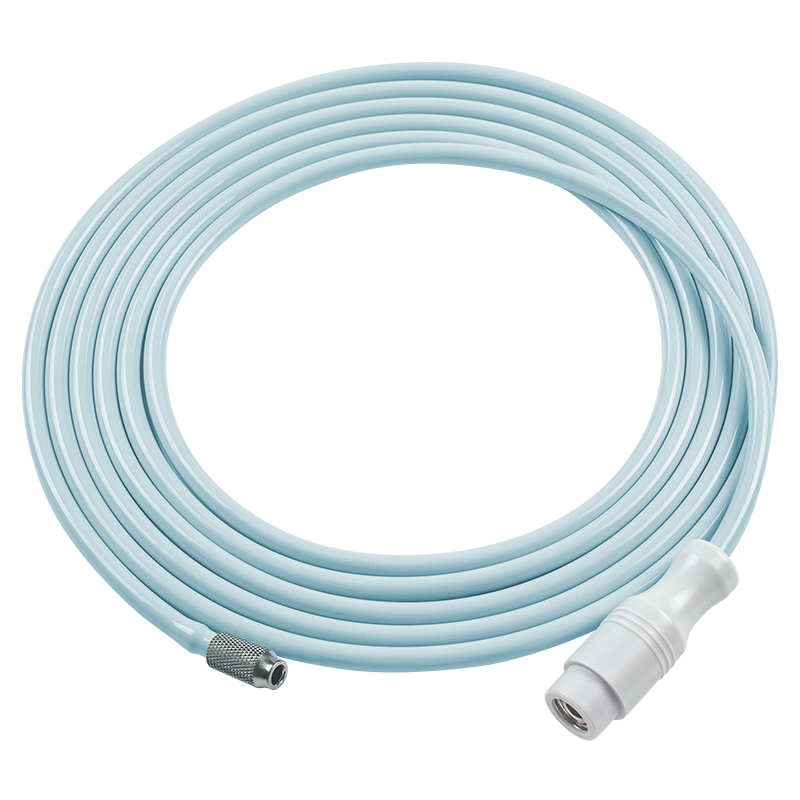

Color:Grey for Adult; Blue for Neonate
Length:3.0M
Material:Medical TPU
Inner Diameter:3.1mm;
Outer Diameter:5.8mm
Weight:200g

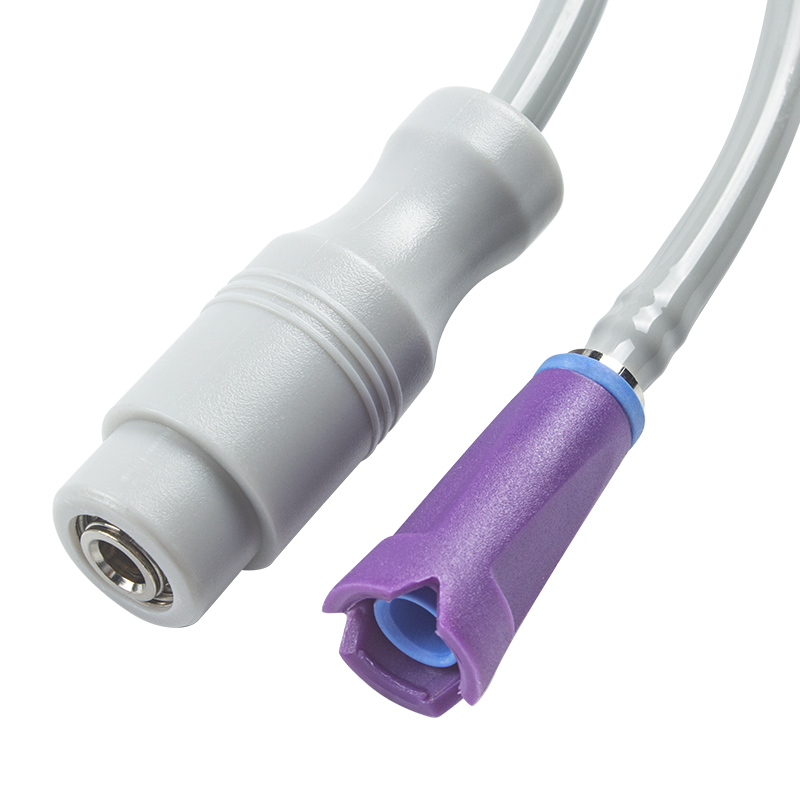

Connector Distal Female Mono Plug

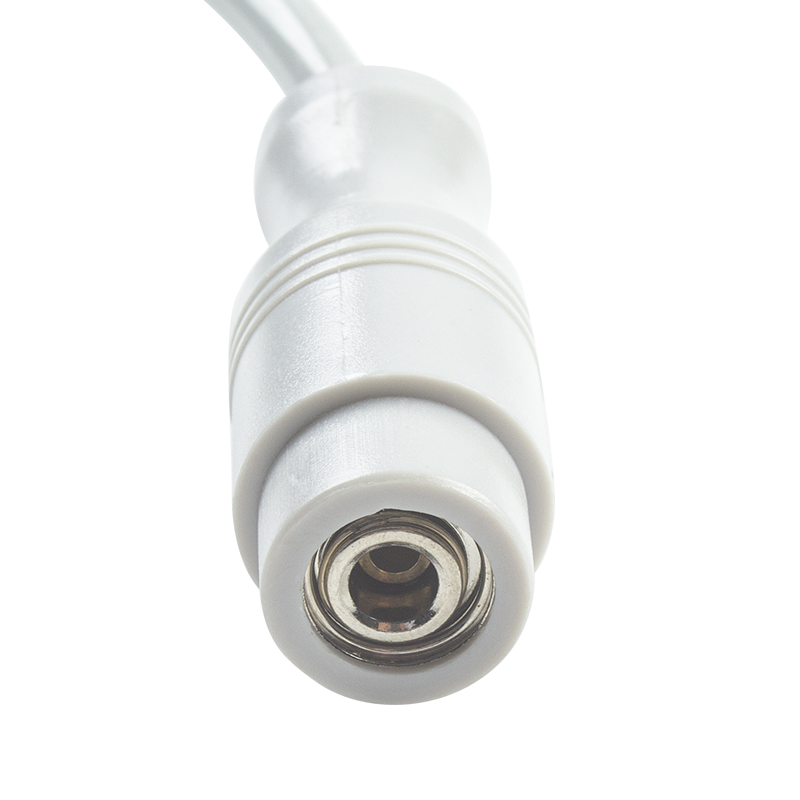

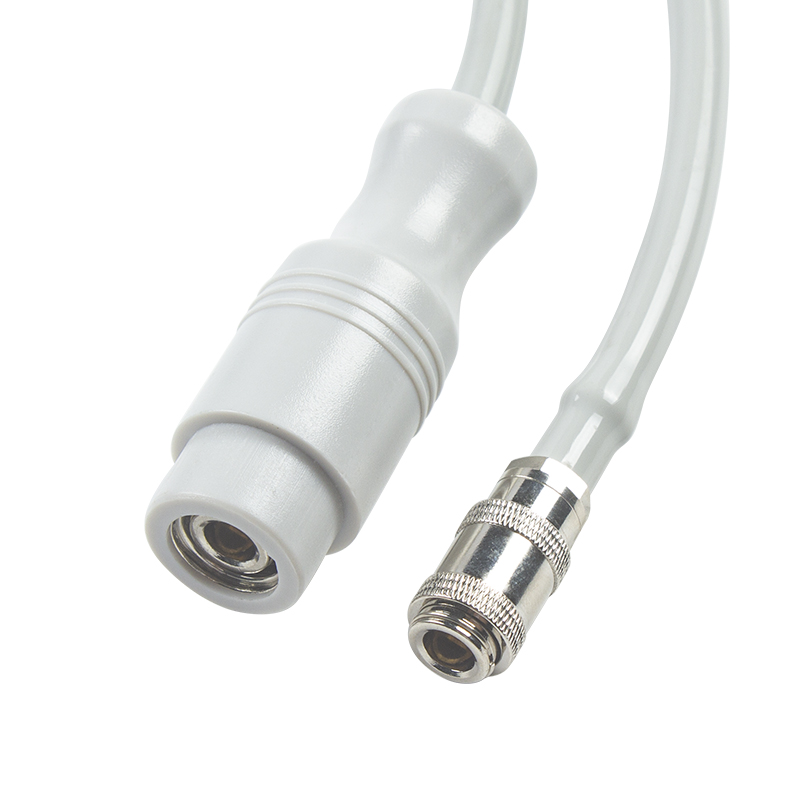

Connector Proximal BP15, Metal, Female Quick Disconnect (Bayonet) / MP00945

4.Company Product :
Reusable SpO2 Sensor
disposable SpO2 Sensor
SpO2 Adapter Cable
ECG Cable and Leadwires
EKG Cable and Leadwires
ECG Holter Cablel and Leadwires
ECG Trunck Cable 3/5/10 Lead
ECG Leadwires 3/5/10Lead
ECG Electrodes and ECG/EKG Accessories
Radiatranparent ECG Cable and Leadwires
Temperature Probe and Adapter Cable
IBP Cable and Adapter Cable and Disposable IBP Transducer
NIBP Cuff and NIBP Adapter Hose Tube
EEG Electrodes Leadwires
Spare parts and semi-sinished cables

5. Certificates


7.Warranty & after-sale service
We guarantee that all our products will work at the best of their ability,
free of non-artificial damage within the following warranty period:
Reusable SpO2 Sensor :365 days
Disposable Items : No warranty time
ECG/EKG/IBP/Temperature Cable and :180 days
If any quality problem accours during warranty time we can send free replacement or refund.Meanwhite if any technical problem or help ,we can solve and provide through Vedio meeting .

8. Delivery time
Stock order :1-2 days
Normal order 2-4 days
Batch order depends on production & order quantity and negotiation.

9. Sample policy
One free same can be provided but freigth is paid by customer

10. OEM Service
If sample or design avaiable ,OEM serivce will be provided.
