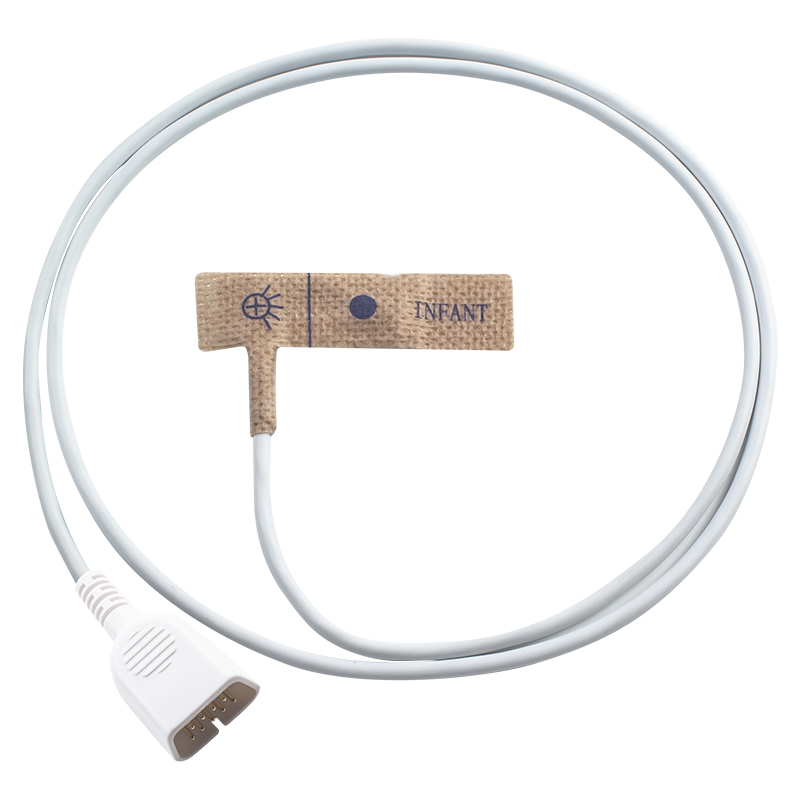

1.Product Name

Nihon Kohden Disposable Spo2 Sensornon-woven fabric / Compatible Model:2303 Life Scope I, 2303K, 2353 Life Scope L, 4103 TL-101T, 4111, 4113 Life Scope P, 5135 Life Scope A / OEM Number: TL-252T

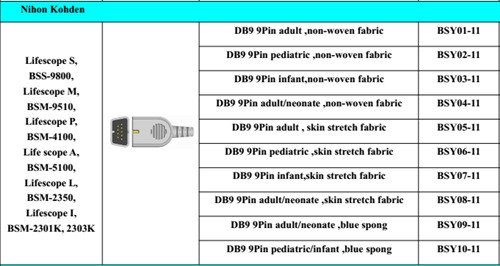

2.Compatible Model Name

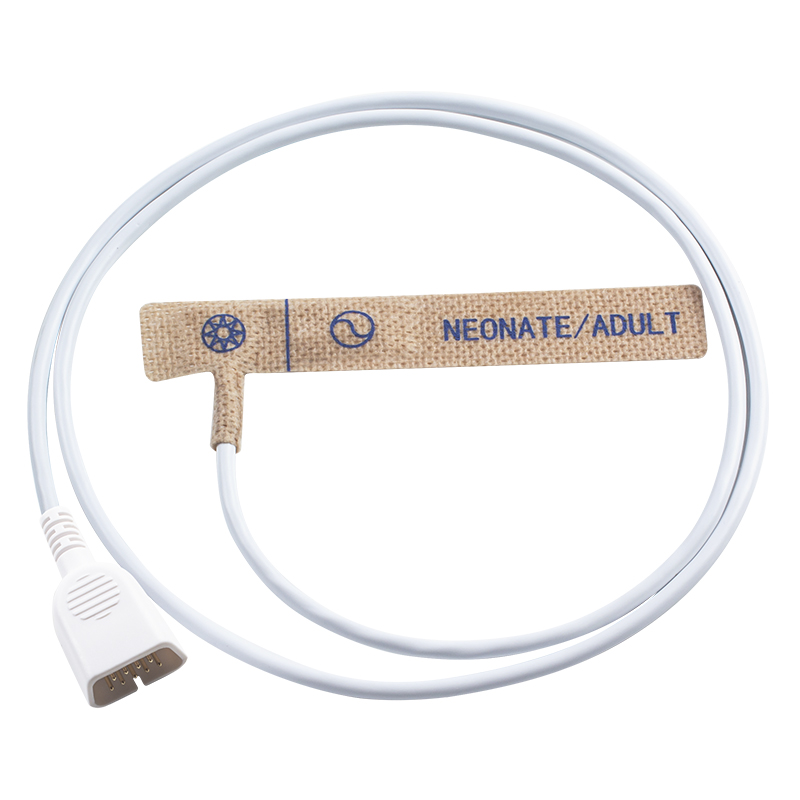

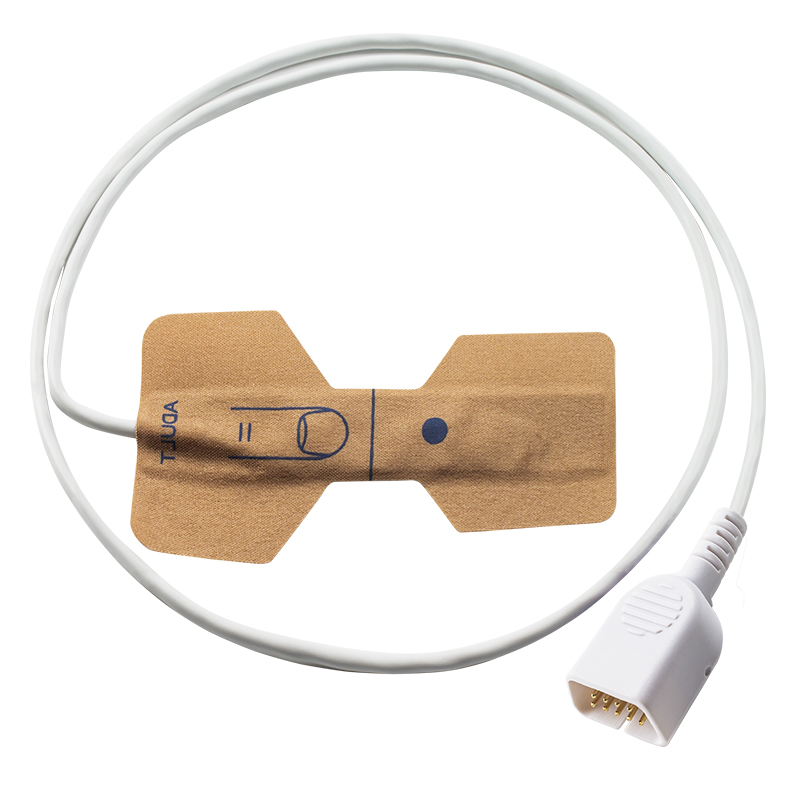

OEM number:Infant (3-15Kg) Pediatric (10-50Kg) Neonate (<3Kg) or Adult (>40Kg)
AMC PR-E610-1013P (Microfoam sensor)
Envitec DP-2203-2, DP-2203-2S
Nihon Kohden TL-252T, TL-272T3 (P203F / P204F 5 pcs / 1.6 m), TL-272T (P203B / P204B 5 pcs / 0.8 m)

Nihon Kohden 2303 Life Scope I, 2303K, 2353 Life Scope L, 4103 TL-101T, 4111, 4113 Life Scope P, 5135 Life Scope A, BSM 2350 Life Scope L, BSM 4101, BSM-2300 Life Scope I, BSM-2301, BSM-230K, BSM-2351, BSM-4100 Life Scope P, BSM-5100 Life Scope A, BSM-5105, BSM-6000 series, BSM-6301K, BSM-6501K, BSM-6701K, BSM-9510 Life Scope M, BSM-9800 Life Scope S, GZ-130P, Life Scope TR, MSM 2301K, NTX ZM-540/541P, Oxipal P225F and Hamilton G5/S1, ZM-520-PA, ZM-521-PA, ZM-530-PA, ZM-531-PA, ZM-900 Series Transmitters

3. Technical Specifications

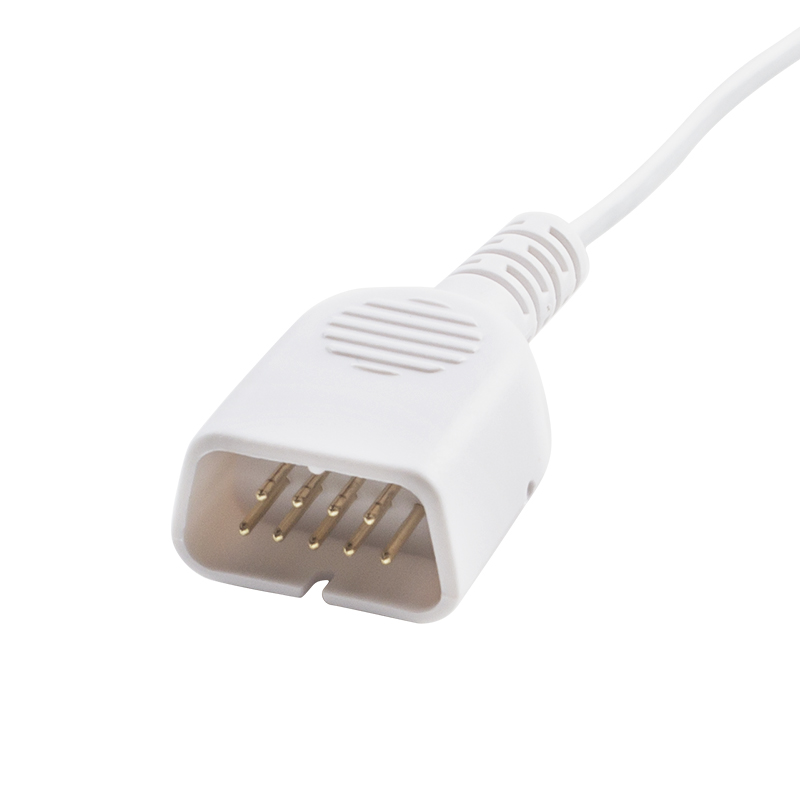

Connector :DB9 9Pin Connector

Length 85CM

Cable :White Cable

Wrapping Material :non-woven fabric

4. Comparative value measurement in % saturation

 Range 70%-80% --- Accuracy ± 3%;

 Range 80%-100% --- Accuracy ± 2%;

SPO2 Range ( < 69%) --- no specified

Pluse Rate :Pluse rate range : 20-250 bpm --- Accuracy ± 3digits ;

5. Warranty & after-sale service

Reusable SpO2 Sensor :365 days

Disposable SpO2 Sensor :No Warranty

 Return & Exchange :Returning &exchanging are possible within 10 days after the goods are received,on the condition that the quality problems are found and approved by Bestmed.Problemaic product could be repaired & exchanged when they are returned to our factory ,provided that failures is found within the warranty period .If no faults are found by factory or the items are out of warranty ,the customers should pay freight.

6. Company Product

Reusable SpO2 Sensor

Disposable SpO2 Sensor
SpO2 Adapter Cable
ECG Cable and Leadwires
EKG Cable and Leadwires
ECG Holter Cablel and Leadwires
ECG Trunck Cable 3/5/10 Lead
ECG Leadwires 3/5/10Lead
ECG Electrodes and ECG/EKG Accessories
Radiatranparent ECG Cable and Leadwires
Temperature Probe and Adapter Cable
IBP Cable and Adapter Cable and Disposable IBP Transducer
NIBP Cuff and NIBP Adapter Hose Tube
EEG Electrodes Leadwires
Spare parts and semi-sinished cables

7. About Delievery Details

1) Our production cycle:

Item will be shipped within 4-7 working days after we get your Payment, We are always serious on the delivery time, all orders will be checked by us carefully to make sure there is no delay on the shipment.
2) Shipping Methods:
a).we usually send goods by DHL,Fedex,TNT,UPS, Tracking number will be advised after delivery, all of express lead time is about 5-7 working days.
b). If order is big, we will suggest you use Air Freight or Sea freight.
