1.Product Name

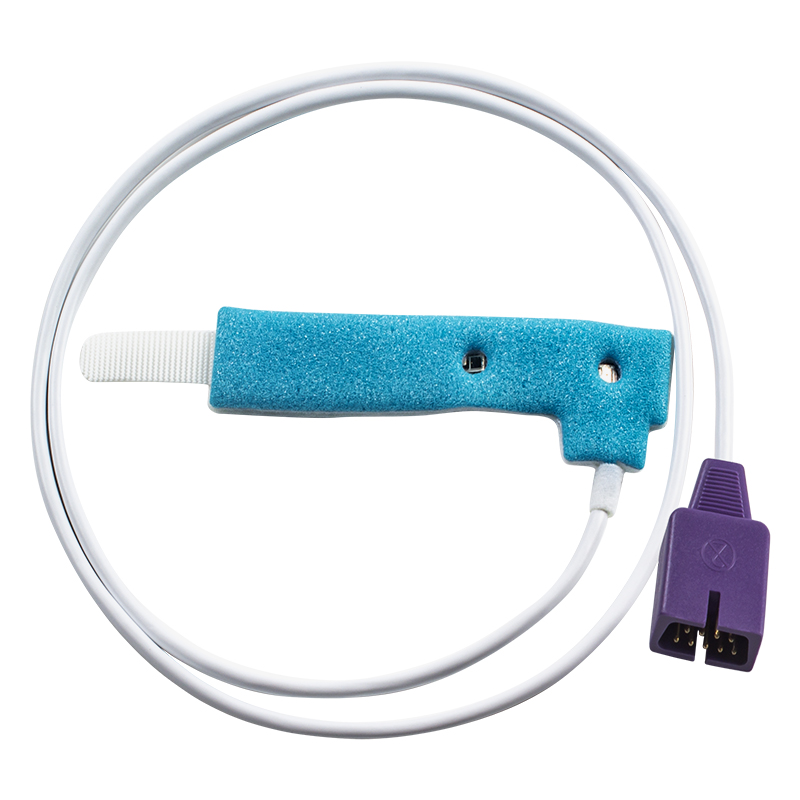

Nellcor Oximax MAX-A Disposable SpO2 Sensor DB9 9Pin Blue Spong

2.Compatible Model Name

OEM number:

Baxter :Explorer, Monarch
Biolight :M9500, Q Series, Q3, Q5, Q7
Biosys :BPM-200, SENTRY
CAS Med :511
Covidien > Nellcor :N-10, N-180, N-190, N-20, N-30, N-560, N-600, N-600x, N-65, N-85, NPB-190, NPB-195, NPB-3910, NPB-3920, NPB-3930, NPB-3940, NPB-40,
NPB-4000, NPB-75, PM100N, PM10N, Sensors that have Nellcor OxiMax Technology and 9 pins
Criticare :506DNV3, 506DNVP3, 506LNV3, 506LNVP3, 506NV3, 506NVP3
DRE :ASM 5000, Waveline, Waveline Plus
Digicare :LW600
Draeger :Infinity Delta, Infinity Delta XL, Infinity Kappa, Narkomed 6400
Fukuda Denshi :Dynascope DS-7100, LX-7230N
GE Healthcare > Critikon > Dinamap :B105, B125, Carescape B650, Carescape V100, Compact DINAMAP MPS, E-NSAT, Pro 1000, Pro 1000 V3, Pro 200, Pro 300, Pro Series V2, ProCare 200, ProCare 400,
ProCare Ausculatory 400
GE Healthcare > Marquette :Dash 2500, Dash 3000, Dash 4000, Dash 5000, PDM Module, Procare B40, Solar 8000,

Solar 8000M, Tram 451, i/9500
Goldway :Vet 420A, Vet 600A
Medtronic > Covidien :Capnostream 35 (PM35MN)
Midmark > Cardell :9403, 9405, 9500 Series, 9500HD, MAX-12 Duo HD
Mindray > Datascope :Accutorr Plus, BeneView T1, BeneVision N1, DPM5, DPM6, DPM7, Duo, Expert, Passport,

Passport 12, Passport 2, Passport 8, Passport V, Passport XG, Spectrum, Spectrum OR, Trio,

 V-Series, VS 8, VS 8A, VS 8C, VS 9, VS 9A, VS 9C, ePM 10M, ePM 12M, iMEC 10, iMEC 12,

 iMEC 15, iMEC 15S, iMEC 5, iMEC 6,

iMEC 7, iMEC 8, iMEC Series, iPM-9800
Mortara :Surveyor S12/S19
Omron > Colin :BP-S510, T105NXM
Philips :FM20, FM30, Heartstream XL, IntelliVue, IntelliVue FAST-SpO2, IntelliVue MP2, IntelliVue MP70, IntelliVue MX450, M1020B, M2601A, M3000A, M3001A,

M3001A A02, M3001A A02C06, M3001A ,A02C12, M3001A A02C18,M3001A A04, M3001A A04C06, M3001A A04C12, M3001A  A04C18, M3002A, M3002A MMS X2, M3500B, M4735A,

 M8102A, M8102A MP2, M8105A MP5, M8105AS,
Smiths Medical > BCI: 3100, 3101, 3180, 3300, 3301, 3302, 3303, 3304, 3401, 6100, 9100, Advisor, Autocorr,

Mini Torr, Mini Torr Plus
Spacelabs :Ultraview SL, Ultraview SL 2700
Stryker > Medtronic > Physio Control :Lifepak 12, Lifepak 15
Welch Allyn :

1500, 42NT0-E1 LXi, 52N00, 52N0P, 52NT0, 52NT1, 53N00, 53N0P, 53NT0, 53NTP, 64NTPE-B,
 64NTPX-2, 64NTPX-3, 64NTPX-4, 64NTPX-5, 64NTPX-6, 64NTPX-7, 64NTPX-A,
64NTPX-B, 64NTPX-N, 64NTPX-Y, 64NTXE-B, 64NTXX-2, 64NTXX-3, 64NTXX-4,
64NTXX-5, 64NTXX-6, 64NTXX-7, 64NTXX-A, 64NTXX-B, 64NTXX-N, 64NTXX-Y,
64NXPE-2, 64NXPE-3, 64NXPE-4, 64NXPE-5, 64NX
Zoll :E Series, M Series, R Series

3. Technical Specifications

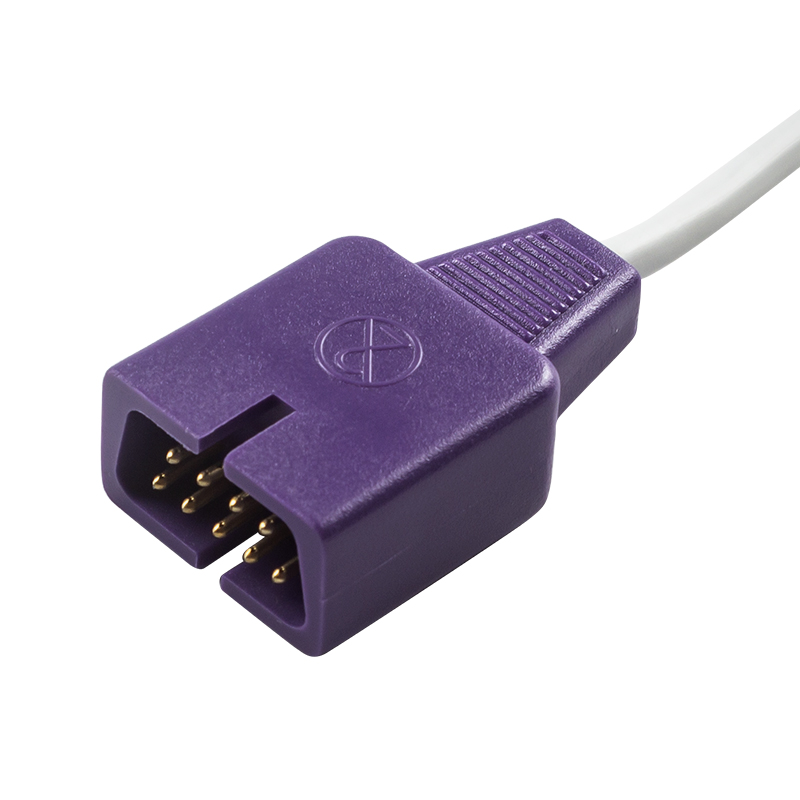

Connector :DB9 9Pin Connector

Length 85CM

Cable :White Cable

Material Material :Blue Spong

4. Comparative value measurement in % saturation

 Range 70%-80% --- Accuracy ± 3%;

 Range 80%-100% --- Accuracy ± 2%;

SPO2 Range ( < 69%) --- no specified

Pluse Rate :Pluse rate range : 20-250 bpm --- Accuracy ± 3digits ;

5. Warranty & after-sale service

Reusable SpO2 Sensor :365 days
Disposable SpO2 Sensor :No Warranty
Return & Exchange :Returning &exchanging are possible within 10 days after the goods are received,on the condition that the quality problems

are found and approved by Bestmed.

Problemaic product could be repaired & exchanged when they are returned to our factory ,provided that failures is found within the warranty period .

If no faults are found by factory or the items are out of warranty ,the customers should pay freight.

6. Company Product

Reusable SpO2 Sensor
Disposable SpO2 Sensor
SpO2 Adapter Cable
ECG Cable and Leadwires
EKG Cable and Leadwires
ECG Holter Cablel and Leadwires
ECG Trunck Cable 3/5/10 Lead
ECG Leadwires 3/5/10Lead
ECG Electrodes and ECG/EKG Accessories
Radiatranparent ECG Cable and Leadwires
Temperature Probe and Adapter Cable
IBP Cable and Adapter Cable and Disposable IBP Transducer
NIBP Cuff and NIBP Adapter Hose Tube
EEG Electrodes Leadwires
Spare parts and semi-sinished cables

7. About Delievery Details

1) Our production cycle:
Item will be shipped within 4-7 working days after we get your Payment, We are always serious on the delivery time, all orders will be checked by us carefully to make sure there is no delay on the shipment.
2) Shipping Methods:
a).we usually send goods by DHL,Fedex,TNT,UPS, Tracking number will be advised after delivery, all
of express lead time is about 5-7 working days.
b). If order is big, we will suggest you use Air Freight or Sea freight.
