1.Product Name

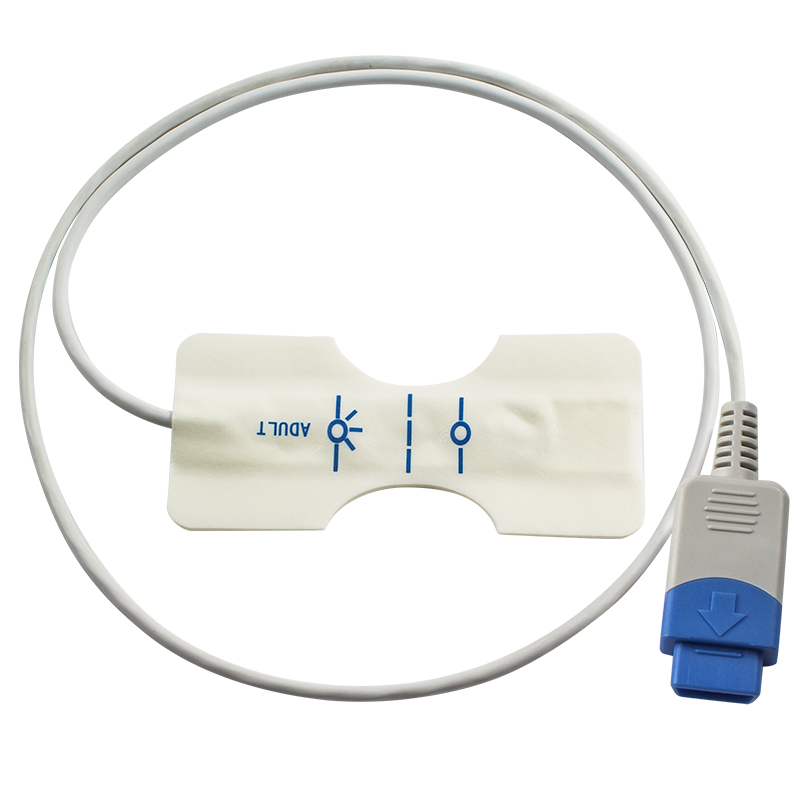

Datex Ohmeda Disposable SpO2 Sensor White Foam TS-AF-25 / Compatible Model: Ohmeda TruSat, 3755, 37XX series, 3800, 3900, 3900P, 4700, Cardiocap/5, S/5, AS/3(N-XOSA TorM built in), CS/3S/5light, UltmaS/5, Coro 259(TruSignal)

2.Compatible Model Name

OEM number:

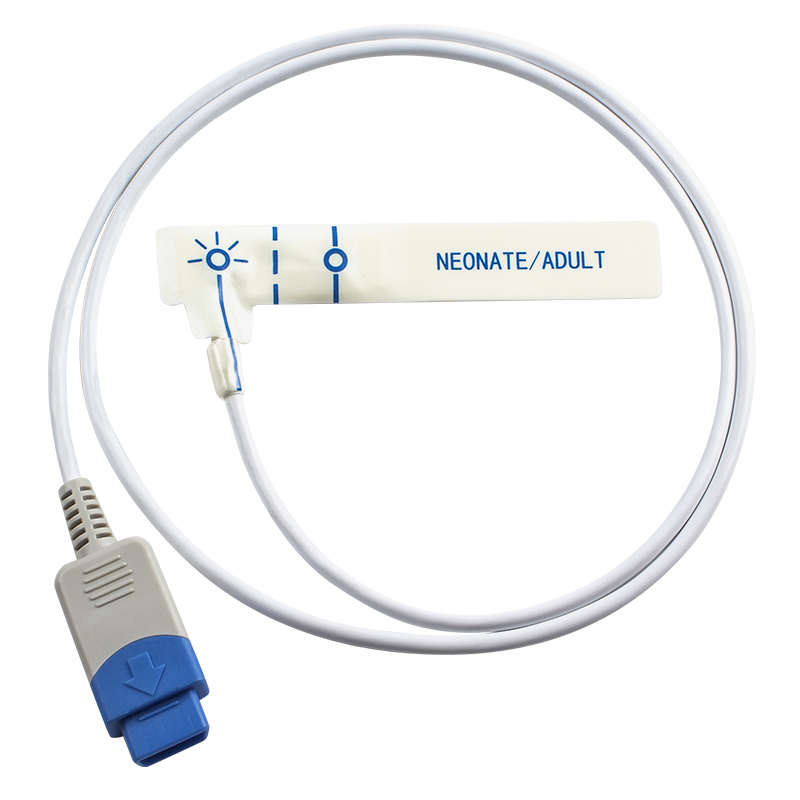

1302 Adult/Neonate

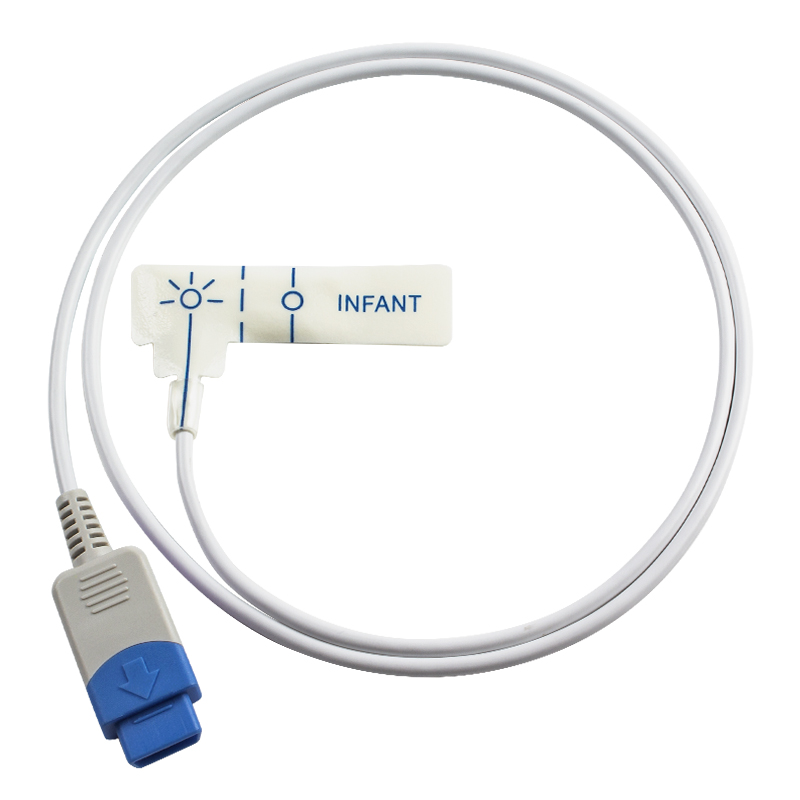

1303 Infant
1301 Pediatric
1300 Adult

Datex Ohmeda 3775, 37xx Series, 3800, 3900, 3900P, 4700, 5250, AS/3 with M-OSAT module, CS/3 with M-OSAT module, Cardiocap/5, E-PRESTN, S/5 with E-series modules, S/5 with M-OSAT module, TruSignal, TuffSat, i4 with E-series modules

GE Healthcare > Corometrics    259

GE Healthcare > Critikon > Dinamap  Carescape B650, Carescape V100, ProCare B20, Procare B40

3. Technical Specifications

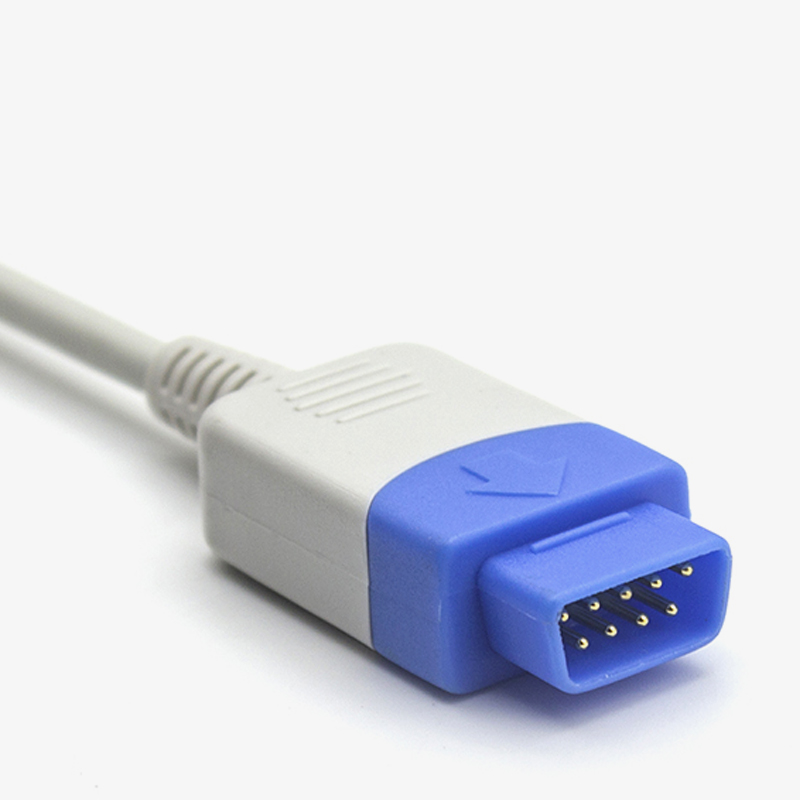

Connector :DB9 9Pin Connector
Length 85CM
Cable :White Cable
Wrapping Material :White Foam

4. Comparative value measurement in % saturation

 Range 70%-80% --- Accuracy ± 3%;
 Range 80%-100% --- Accuracy ± 2%;
 SPO2 Range ( < 69%) --- no specified
Pluse Rate :Pluse rate range : 20-250 bpm --- Accuracy ± 3digits ;

5. Warranty & after-sale service

Reusable SpO2 Sensor :365 days
Disposable SpO2 Sensor :No Warranty

Return & Exchange :Returning &exchanging are possible within 10 days after the goods are received,on the condition that the quality problems are found and approved by Bestmed.Problemaic product could be repaired & exchanged when they are returned to our factory ,provided that failures is found within the warranty period .If no faults are found by factory or the items are out of warranty ,the customers should pay freight.

6. Company Product

Reusable SpO2 Sensor
Disposable SpO2 Sensor
SpO2 Adapter Cable
ECG Cable and Leadwires
EKG Cable and Leadwires
ECG Holter Cablel and Leadwires
ECG Trunck Cable 3/5/10 Lead
ECG Leadwires 3/5/10Lead
ECG Electrodes and ECG/EKG Accessories
Radiatranparent ECG Cable and Leadwires
Temperature Probe and Adapter Cable
IBP Cable and Adapter Cable and Disposable IBP Transducer
NIBP Cuff and NIBP Adapter Hose Tube
EEG Electrodes Leadwires
Spare parts and semi-sinished cables

7. About Delievery Details

1) Our production cycle:
Item will be shipped within 4-7 working days after we get your Payment, We are always serious on the delivery time, all orders will be checked by us carefully to make sure there is no delay on the shipment.
2) Shipping Methods:
a).we usually send goods by DHL,Fedex,TNT,UPS, Tracking number will be advised after delivery, all
of express lead time is about 5-7 working days.
b). If order is big, we will suggest you use Air Freight or Sea freight.
